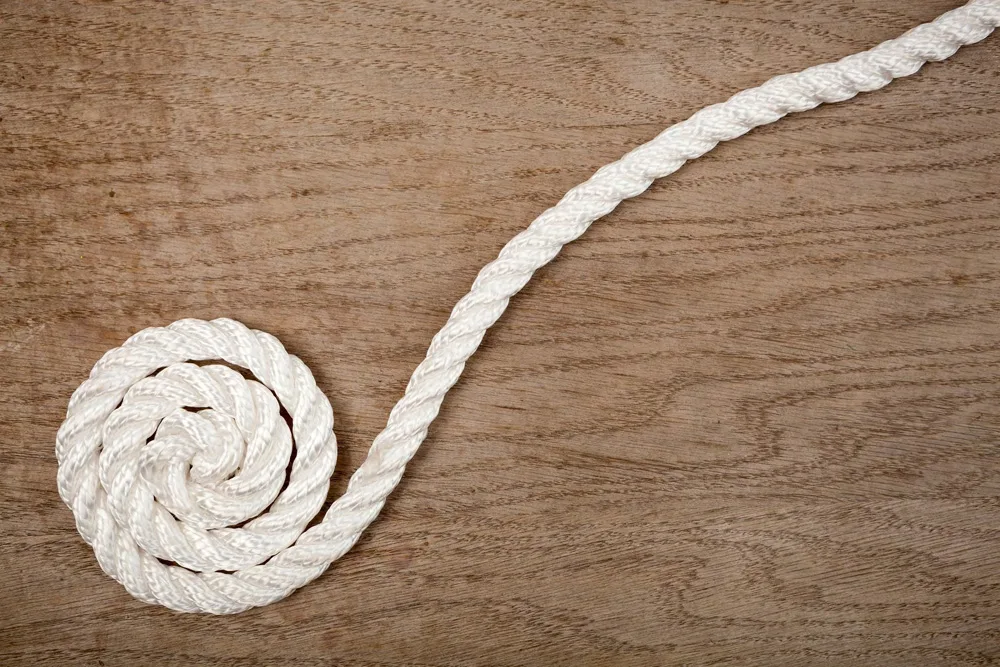

Nylon Rope (Polyamide)

Nylon Rope (Polyamide)

Demo Product Description

Colour

Natural White

Advantages

High stretch—excellent shock load absorption
Very high tensile strength
Exceptional abrasion and wear resistance
Long life even under heavy use

Specifications

Material: Polyamide 6 / 66
Diameter Range: 4mm–32mm
Construction: 3-Strand Twisted
Colour: Natural White
Packaging: Coils or reels
Breaking Strength (Examples):
6mm – ~750 kgf
12mm – ~3,000 kgf
20mm – ~8,300 kgf

Applications

Mooring and towing
Anchor lines
Shock absorption rigging

Products

(as per AS 4142.2—1993)

Diameter (mm)	Linear Density of Rope (ktex)	Minimum Breaking Force (kN)	Maximum Length of 10 Lays (mm)	Reference Tension (N)	Length of 1 kg of Rope (m)	Approx. Mass per 250 m Coil (kg)
4	10.5	3.15	140	20	95.2	2.66
6	22.5	7.35	210	40	44.4	5.71
8	40.0	13.2	280	80	25.0	10.2
10	62.0	20.4	350	120	16.1	15.7
12	89.0	29.4	420	180	11.2	22.6
14	122	40.2	490	240	8.20	31.0
16	158	52.0	560	320	6.33	40.1
18	200	65.7	630	400	5.00	50.8
20	245	81.4	700	500	4.08	62.2
22	300	98.0	770	600	3.33	76.1
24	355	118	840	700	2.82	90.1
28	485	155	980	1000	2.06	123
32	630	196	1120	1300	1.59	160

Note: The minimum breaking force should never be considered as the safe working load of the rope.
