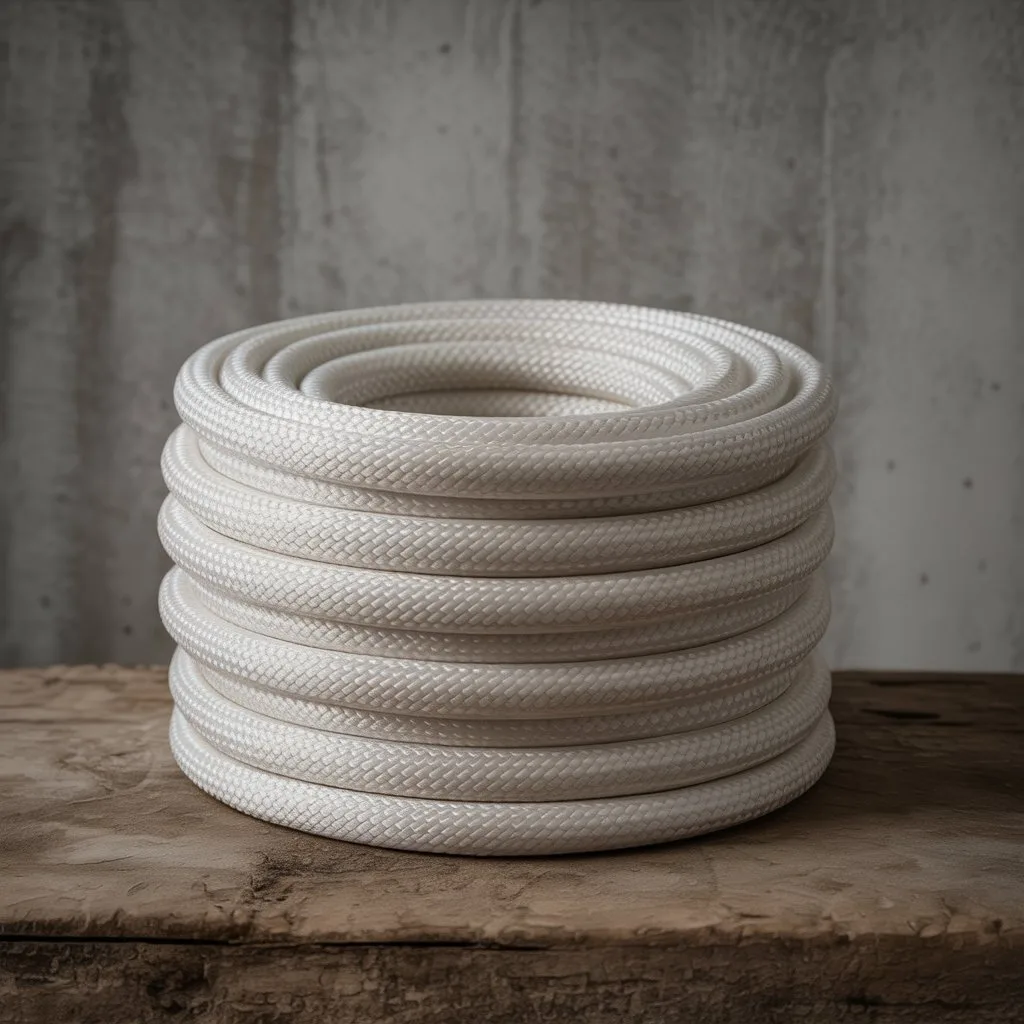

PP SuperDAN Rope
Zuna PP SuperDAN Rope is a high-performance polypropylene rope engineered for demanding industrial, marine, and load-securing applications. Made from advanced Parapro technology, it offers exceptional strength-to-weight ratio and long service life.
Colour
Natural White
Advantages
Specifications
Applications
Products
(as per AS 4142.2—1993)
| Diameter (mm) | Linear Density of Rope (ktex) | Minimum Breaking Force (kN) | Maximum Length of 10 Lays (mm) | Reference Tension (N) | Length of 1 kg of Rope (m) | Approx. Mass per 250 m Coil (kg) |
| 4 | 6.00 | 2.10 | 148 | 20 | 167 | 1.52 |
| 6 | 17.0 | 5.90 | 222 | 40 | 58.8 | 4.31 |
| 8 | 30.0 | 10.4 | 296 | 80 | 33.3 | 7.61 |
| 10 | 45.0 | 15.3 | 370 | 120 | 22.2 | 11.4 |
| 12 | 65.0 | 21.7 | 444 | 180 | 15.4 | 16.5 |
| 14 | 90.0 | 29.9 | 518 | 240 | 11.1 | 22.8 |
| 16 | 115 | 37.0 | 592 | 320 | 8.70 | 29.2 |
| 18 | 148 | 47.2 | 666 | 400 | 6.76 | 37.6 |
| 20 | 180 | 56.9 | 740 | 500 | 5.56 | 45.7 |
| 22 | 220 | 68.2 | 814 | 600 | 4.55 | 55.8 |
| 24 | 260 | 79.7 | 888 | 700 | 3.82 | 65.0 |
| 28 | 355 | 105 | 1036 | 1000 | 2.82 | 90.1 |
| 32 | 460 | 132 | 1184 | 1300 | 2.17 | 117 |
Note: The minimum breaking force should never be considered as the safe working load of the rope.
